Counting machines
FROM GTS
From standardised solutions to bespoke systems
Modern counting machines deliver the ideal technology for every need. From compact, high-precision systems for office use to powerful machines integrated into production lines, explore our versatile solutions tailored to diverse applications and requirements.
Countmaster Standalone CS392
Technical specifications
Countable material
Paper, polymer, hybrid, films
Number of counting heads
1
Counting position
Corner counting
Maximum Format
460 mm × 660 mm
Minimum format
55 mm × 100 mm
Maximum stack height
195 mm
Minimum stack height
6 mm
Power consumption
2.1 kW
Dimensions (L × W × H)
1240 × 840 × 1984 mm
Weight
approx. 170 kg
Countmaster Standalone CS392
Technical specifications
Countable material
Paper, polymer, hybrid, films
Number of counting heads
1
Counting type
Corner counting
Maximum Format
460 mm × 660 mm
Minimum format
55 mm × 100 mm
Maximum stack height
195 mm
Minimum stack height
6 mm
Power consumption
2.1 kW
Dimensions (L × W × H)
1240 × 840 × 1984 mm
Weight
approx. 170 kg
Special features
Ergonomic design with seated operation for comfortable working

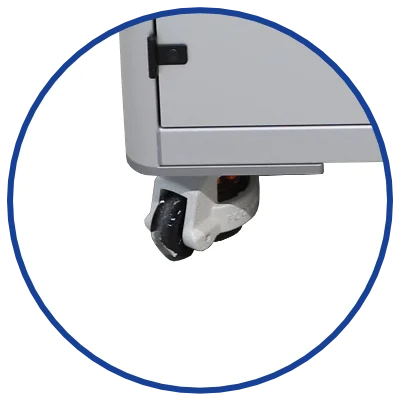

Integrated transport wheels for easy repositioning and flexible production layouts

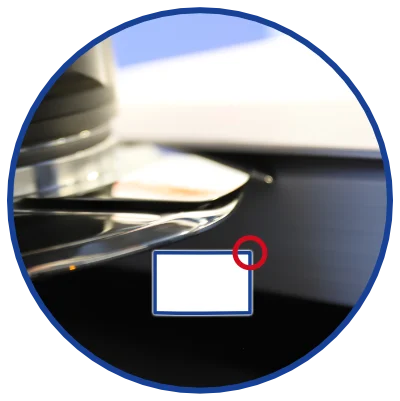

Corner counting with easy and secure stack positioning
10-inch touchscreen display with an intuitive user interface, available in multiple languages
Standard equipment:
- Intuitive PLC control system
- GTS Analytics
- Multi-language touchscreen display
- Hard-coated aluminum table

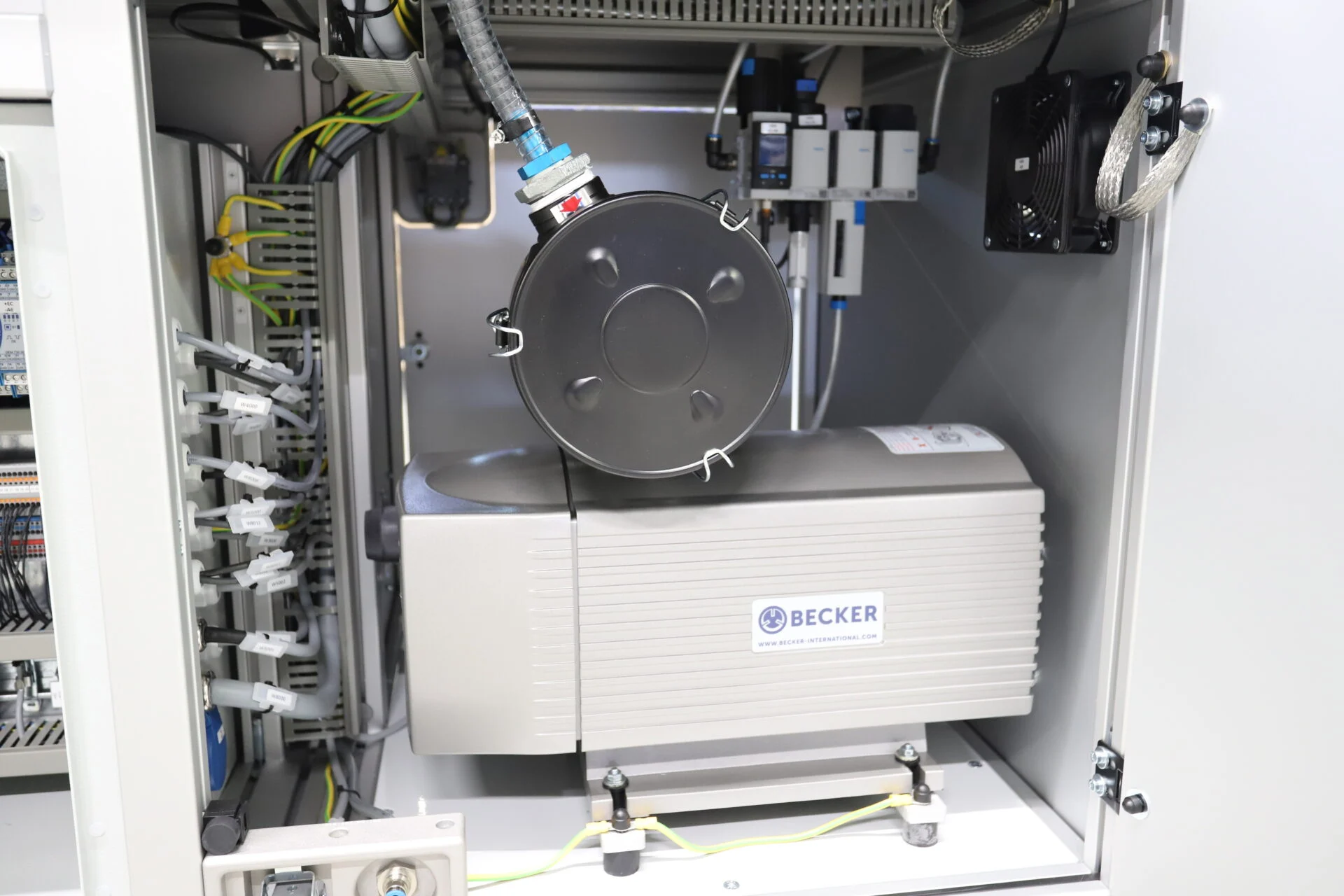

- High-performance vacuum pump
- Password protection
- Integrated counting results memory
Standard equipment:
- Intuitive PLC control system
- GTS Analytics
- Multi-language touchscreen display
- Hard-coated aluminum table
- High-performance vacuum pump
- Password protection
- Integrated counting results memory
Counting modes:
- Standard counting mode
- Difference counting mode
- Addition counting mode
- Batch counting mode
- Manual and automatic mode
Counting modes:
- Standard counting mode
- Difference counting mode
- Addition counting mode
- Batch counting mode
- Manual and automatic mode
Other standalone models
Countmaster Standalone CS218
Highlights:
- Sheet formats up to 1160 x 800 mm.
- Flexibly positionable counting head for fully adjustable counting positions.
- Precise corner and side-edge counting for maximum accuracy.
- Intuitive 10-inch touch display in multiple languages.
- Integrated recipe management for fast product changeovers.
- Maintenance-optimised design for quick and easy cleaning
Countmaster Standalone CS489
Highlights:
- Sheet formats up to 1680 x 900 mm.
- Two positionable counting heads for fully adjustable counting positions.
- Precise corner and side-edge counting for maximum accuracy.
- Intuitive 10-inch touch display in multiple languages.
- Integrated recipe management for fast product changeovers.
- Maintenance-optimised design for quick and easy cleaning
