Counting machines
FROM GTS
From standardised solutions to bespoke systems
Modern counting machines deliver the ideal technology for every need. From compact, high-precision systems for office use to powerful machines integrated into production lines, explore our versatile solutions tailored to diverse applications and requirements.

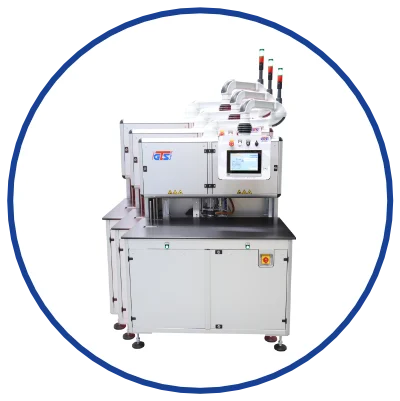

Countmaster Standalone CS218
Technical specifications
Countable material
Paper, polymer, hybrid, films
Number of counting heads
1 (movable)
Counting position
Corner counting and side-edge counting possible
Maximum Format
1160 mm (countable side) × 800 mm
Minimum format
135 mm (countable side) × 60 mm
Maximum stack height
200 mm
Minimum stack height
6 mm
Power consumption
3.5 kW
Dimensions (L × W × H)
1320 × 1200 × 2192 mm
Weight
approx. 530 kg
Countmaster Standalone CS218
Technical specifications
Countable material
Paper, polymer, hybrid, films
Number of counting heads
1 (movable)
Counting type
Corner counting and side-edge counting possible
Maximum Format
1160 mm (countable side) × 800 mm
Minimum format
135 mm (countable side) × 60 mm
Maximum stack height
200 mm
Minimum stack height
6 mm
Power consumption
3.5 kW
Dimensions (L × W × H)
1320 × 1200 × 2192 mm
Weight
approx. 530 kg
Special features
Latest generation of the world's best-selling single-head counting machine

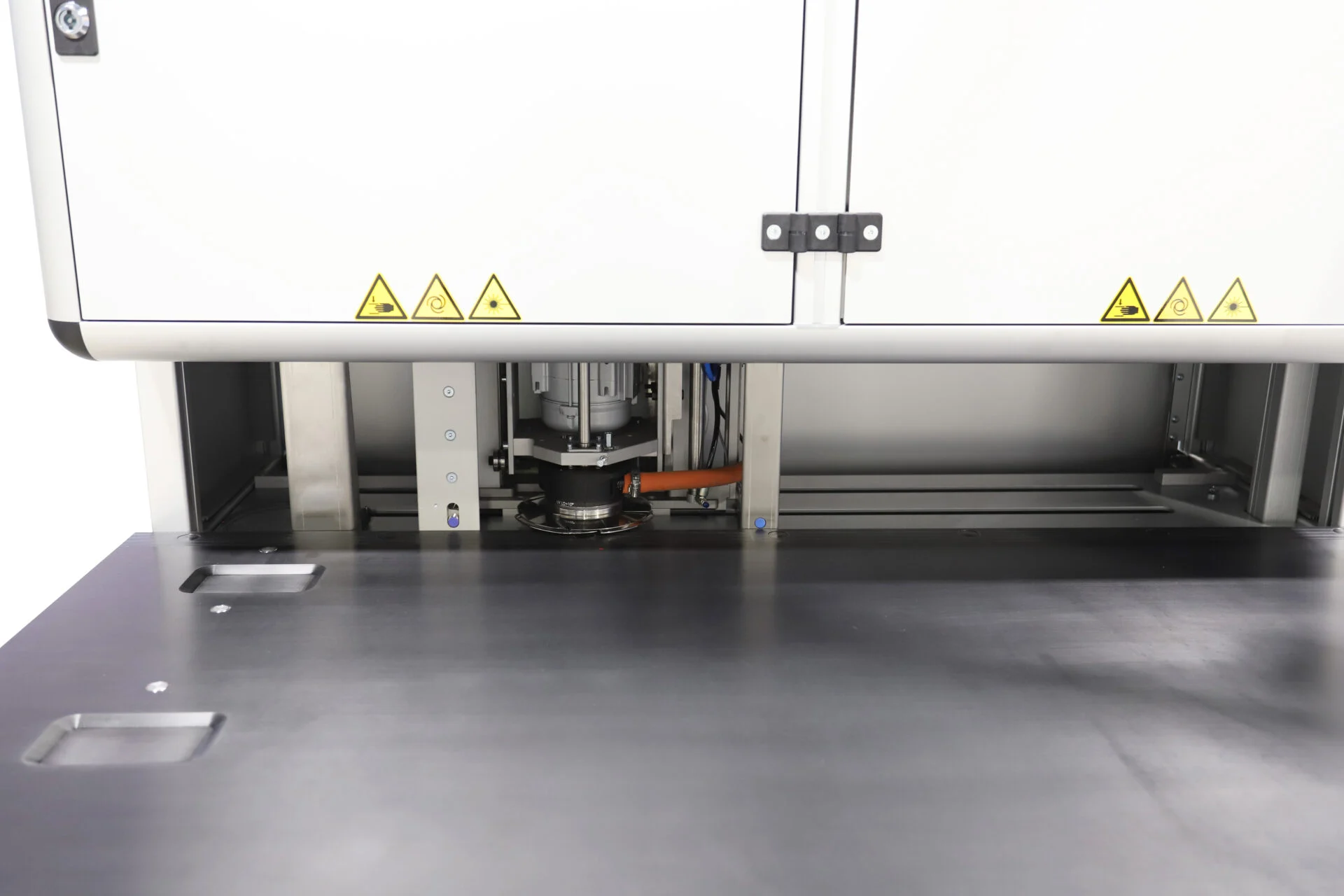

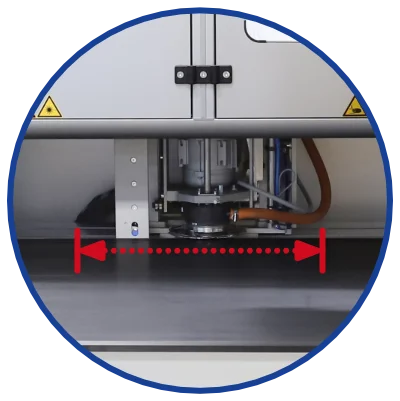

Flexibly positionable counting head for fully adjustable counting positions

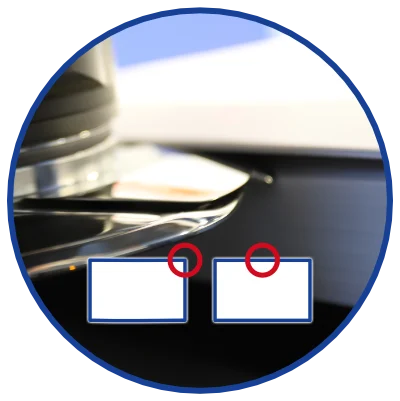

Corner and side-edge counting to selectively bypass security features for maximum counting accuracy.

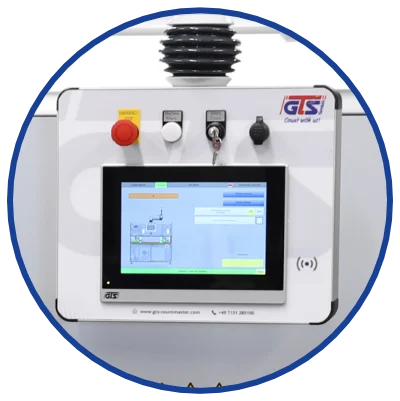

10-inch touchscreen display with an intuitive user interface, available in multiple languages
Standard equipment:
- Intuitive PLC control system
- GTS Analytics
- Multi-language touchscreen display
- Air table

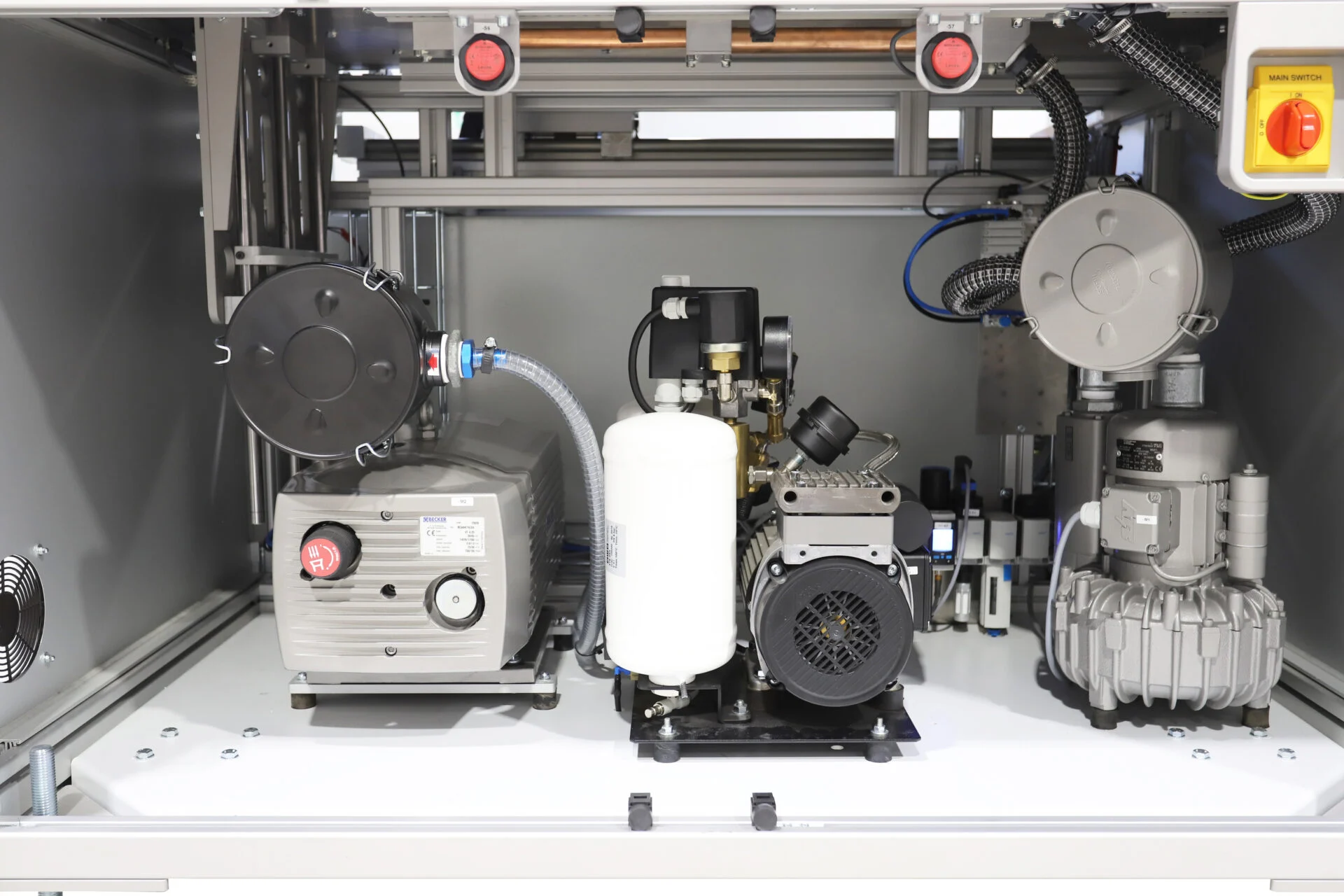

- High-performance vacuum pump
- Retractable paper stops
- Password protection
- Integrated counting results memory
Standard equipment:
- Intuitive PLC control system
- GTS Analytics
- Multi-language touchscreen display
- Air table
- High-performance vacuum pump
- Retractable paper stops
- Password protection
- Integrated counting results memory
Counting modes:
- Standard counting mode
- Difference counting mode
- Addition counting mode
- Batch counting mode
- Dual counting mode
- 4-corner counting mode
- Manual and automatic mode
Counting modes:
- Standard counting mode
- Difference counting mode
- Addition counting mode
- Batch counting mode
- Dual counting mode
- 4-corner counting mode
- Manual and automatic mode
Other standalone models
Countmaster Standalone CS489
Highlights:
- Sheet formats up to 1680 x 900 mm.
- Two positionable counting heads for fully adjustable counting positions.
- Precise corner and side-edge counting for maximum accuracy.
- Intuitive 10-inch touch display in multiple languages.
- Integrated recipe management for fast product changeovers.
- Maintenance-optimised design for quick and easy cleaning
Countmaster Standalone CS392
Highlights:
- Sheet formats of up to 460 x 660 mm.
- Ergonomic design with seated operation for comfortable working.
- Precise corner and side-edge counting for maximum accuracy.
- Intuitive 10-inch touch display in multiple languages.
- Integrated transport wheels for easy repositioning and flexible production layouts.
